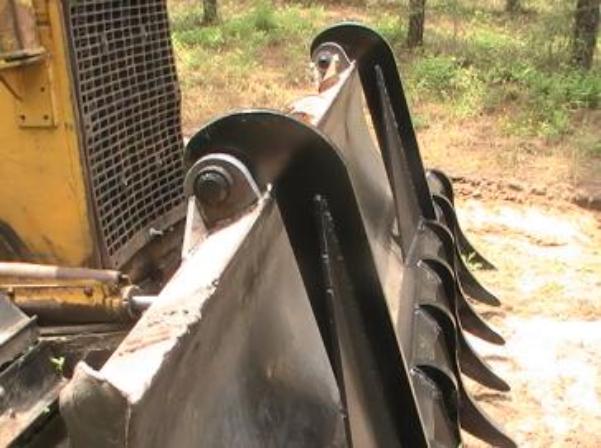

our hang on design allows for easy pin alignment
pin on rake quick hitch demo video
Pin On Dozer Rake
WALLACE  ATTACHMENTS
6881 129th. Rd.
Live Oak Fl. 32060
contact #  386-362-4506
email
wallaceattachments@yahoo.com

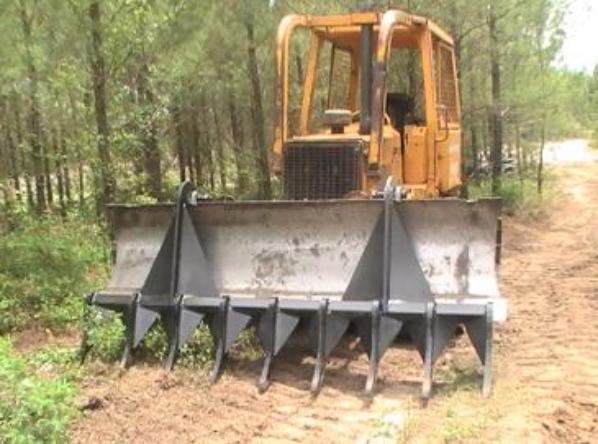

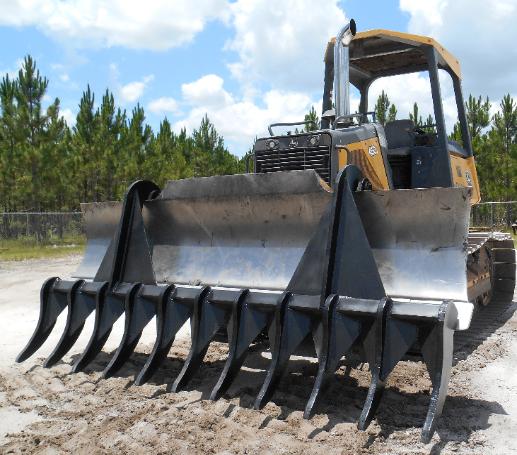

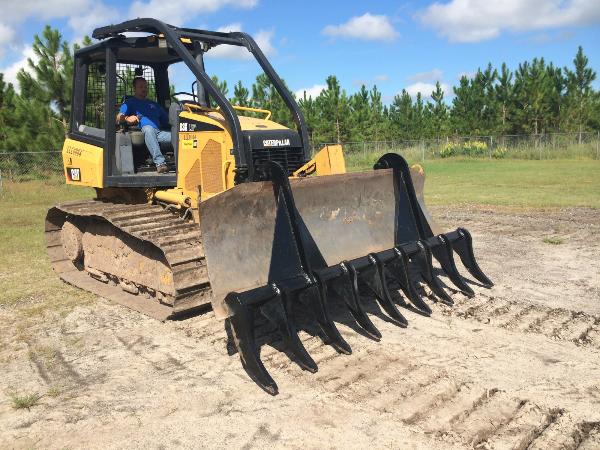

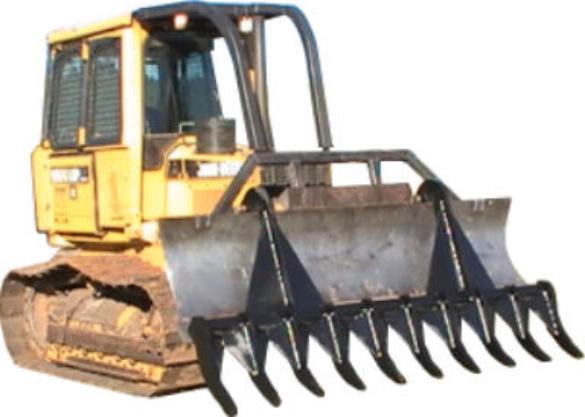

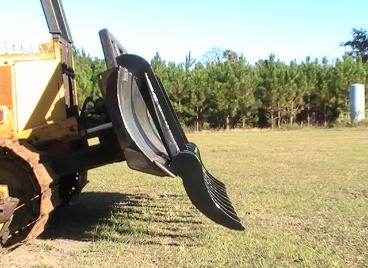

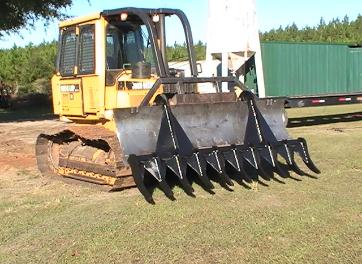

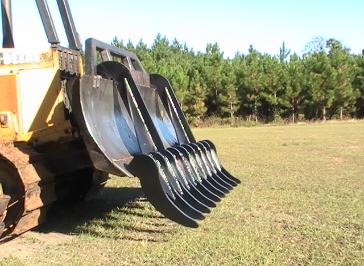

Pinned on the blade dozer rake attachment  made from a high grade (A-514) 130,000 tensile steel
with long curved teeth, compound angled gussets, quick hitch design,
superior shape, allowing the operator to push, pile and separate debris easily.
Greatly increaseing the type and amount of material that can be moved with the machine.
Custom built to fit any machine.


Machine size        Width        # Of Teeth       Thickness       Main Bar        Gussetts         Uprights

20,000lbs.            8’-10’            9-11                 1 1/4”               4”x4”                3/8”                1”
35,000lbs.         10’- 12’            9-12                 1 1/2”               5”x5”                1/2”                1 1/4”
48,000lbs.         12’-14’           10-13                 1 3/4”               6”x6”                3/4”                1 1/2”


Series II

Series II

Series III

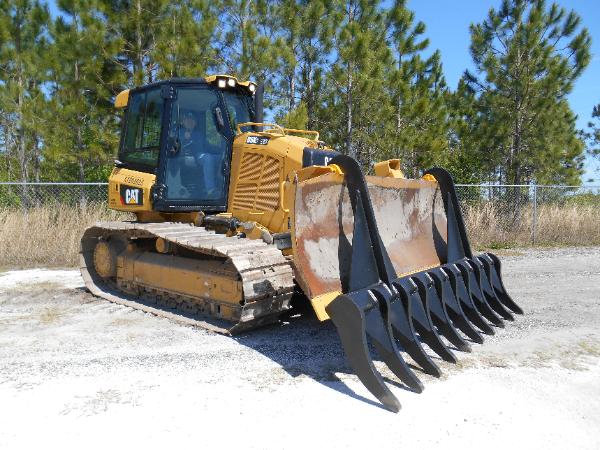

120" Series I Dozer Rake $ 2800.00
